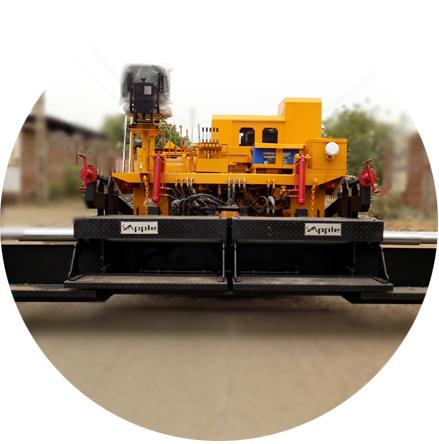

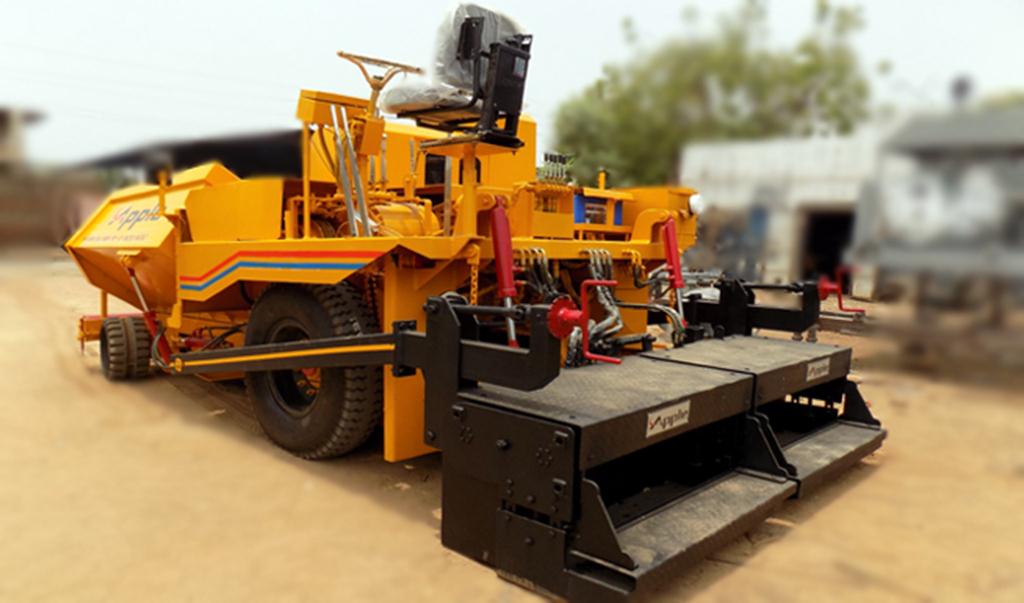

PAVER FINISHER
Perfomance
| Paving Width | F2.5 m. 4.0 m |
|---|---|
| Paving Thickness | Upto - 200 mm |
| Paving Speed | 1.25 - 23 m/min. |
| Travel Speed | 16.0 Kmph (Max) |
| Crown | Max 6% |
Dimensions
| Overall Length | 5000 mm |
|---|---|
| Overall Width | 3000 mm |
| (With Extensions) | 4000 mm |
| Overall Height | 16.0 Kmph (Max) |
| Wheel Base | 2450 mm |
| Wheel Track | 1950 mm |
| Weight | 8500 Kgs (Appox) |
Product Specification
Hopper : Twin hydraulically Operated folding Hoppers 4 cu. Mt. (Approx) Capacity.
Conveyor (Feeder) : Twin lane type 80 mm pitch chain mechanically driven.
Auger Screw : Distributes material across full width of machine.
Auger Screw (Spreader) : Twin Mechanically driven abrasion resistant auge screw.
Screed : 450 mm (L) x 2500 mm (W) x 2 Pcs.
Screed Heating Arrangement : Two nos burners are provided with kerosene tank with Pressure gauge for heating of screed plate.
Tamper (Vibrator) : Tone eccntric shaft hydraulically driven.
Hydraulic Systems : All hydraulic Control valves and pumps are of vickers / Dowty / Rexroth make will be provided.
Extension :
- 450 MM (L) x 75 mm (W) x 2 Pcs
- 450 MM (L) x 150 mm (W) x 2 Pcs
- 450 MM (L) x 225 mm (W) x 2 Pcs
- 450 MM (L) x 300 mm (W) x 2 Pcs
Tyres :
- Front: 600 x 550 x 178 mm - 2 Nos. (Solid)
- Rear: 1000 x 20 - 16 ply - 2Nos
Capacity :
- Fuel tank: 120 liters
- Hydraulic Oil Tank: 60 liters
Special Features :
- Air Brake for effective braking.
- Special Design of chasis for more strength and stability.
- All operational controls are provided at one Dashboard.
Dimensions
| Engine | Standard | Option |
|---|---|---|
| Simpson water cooled / kirlosker industrial diesel engine | P - 4 | S4 - 1 |
| No. of cylinders | 4 | 4 |
| Bore x Stroke, mm | 88.9 x 127 | 91.4 x 127 |
| Swept vilume, litres | 3.14 | |
| Firing Order | 1 - 3 - 4 - 2 | 1 - 3 - 4 - 2 |
| Compression Ratio | 16.5:1 | 16.5:1 |
| BHP | 40 at 1800 RPM | 54 at 2300 RPM |
